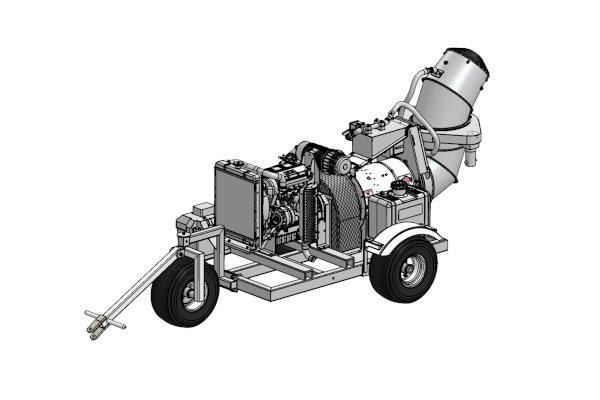

Monsoon Diesel
Tow Behind
- 23.7 HP Liquid Cooled Diesel Engine
- Gyratory Atomizing Nozzle
- Up to 270 degrees oscillation providing wide variable coverage
Monsoon Diesel Specs & Compare
| Type | Tow Behind |
| Acreage | 1 to 3, 10+, 4 to 6, 7 to 9 |
| Debris Type | Crop, Dust/Odor |
| Input Power | 23.7 HP Liquid Cooled Diesel Engine |
| Start / Stop Control | Wireless remote start / stop |
| Throttle Control | Wireless remote |
| Nozzle | Gyratory Atomizing Nozzle |
| Nozzle Function | Wireless remote |
| Nozzle Control | Up to 270 degrees, oscillation |
| Remote | Hand held, 4 function push button, water resistant |
| Fuel Capacity | 12 gal |
| Battery | 12 volt, 525 cold cranking amps |
| Trailer | 3 wheel off-road trailer package |
| Tires | 18x8.50-9 |
| Mounting | Skid mount or tow behind/pull-push trailer |
| Overall Length w/ Nozzle | 136 in |
| Frame Width w/ Wheels | 55 in |
| Height | 54 in |
| Weight | 915 lbs (415 kg) |
| Shipping Weight | 1074 lbs (489 kg) |
| Misting System | Gyratory Atomizing Nozzle |
| Hose Input | 3/4 in utility / garden hose |
| Minimum Water Volume | 1/3 gallon per minute |
| Maximum Water Volume | 20 gallons per minute @120 psi |
| Minimum Water Pressure | 40 psi |
| Maximum Water Pressure | 120 psi |
| Droplet Size | 50-200 micron |
| Throw Distance Horizontal | Up to 125 ft in neutral wind conditions |
| Throw Distance Vertical | Up to 50 ft in nuetral wind conditions |
| Machine Warranty | 10 Year Manufacturer Warranty |
| Engine / Motor Warranty | 3 Year Warranty |
| Prop 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Monsoon Diesel Features & Benefits
- Industry first portable diesel powered dust and odor control.
- Non-clogging proprietary Gyratory Atomizing Nozzle.
- Up to 270 degrees oscillation.
- Hand held 4 function push button remote. Water resistant.
- Uses standard municipal water pressure and common 3/4″ garden hose connection.
