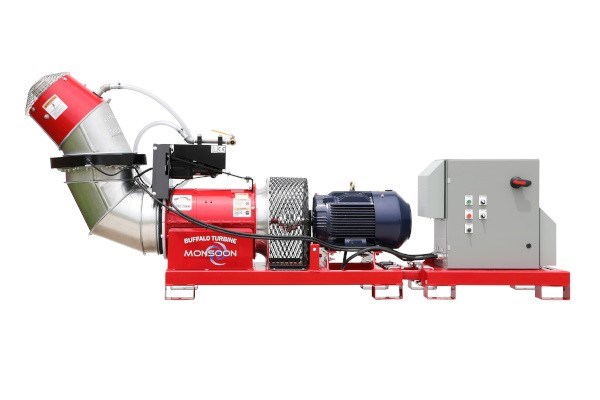

Monsoon Electric
SKID
- 20HP 3 Phase Electric Motor
- Gyratory Atomizing Nozzle
- Up to 270 degrees oscillation providing wide variable coverage
Monsoon Electric Specs & Compare
| Type | Skid |
| Debris Type | Dust/Odor |
| Acreage | 1 to 3, 10+, 4 to 6, 7 to 9 |
| Input Power | 20HP 460 Volt 3 Phase Electric Motor |
| Start / Stop Control | Manual |
| Throttle Control | Manual |
| Nozzle | Gyratory Atomizing Nozzle |
| Nozzle Function | Manual |
| Nozzle Control | 3 Oscillation Settings from 30 Degrees to 80 Degrees |
| Remote | Wired VFD Control Panel |
| Fuel Capacity | n/a |
| Battery | n/a |
| Trailer | n/a |
| Tires | n/a |
| Mounting | Oscillation stand |
| Overall Length w/ Nozzle | 72 in |
| Frame Width w/ Wheels | 22 in |
| Height | 24 in |
| Weight | 875 lbs (397 kg) |
| Shipping Weight | 978 lbs (445 kg) |
| Misting System | Gyratory Atomizing Nozzle |
| Hose Input | 3/4 in utility / garden hose |
| Minimum Water Volume | 1/3 gallon per minute |
| Maximum Water Volume | 20 gallons per minute @120 psi |
| Minimum Water Pressure | 40 psi |
| Maximum Water Pressure | 120 psi |
| Droplet Size | 50-200 micron |
| Throw Distance Horizontal | Up to 125 ft in neutral wind conditions |
| Throw Distance Vertical | Up to 50 ft in nuetral wind conditions |
| Machine Warranty | 10 Year Manufacturer Warranty |
| Engine / Motor Warranty | 2 Year Warranty |
Monsoon Electric Features & Benefits
- The Monsoon Electric Dust Controller misting system is a permanent mounted solution for any dust and odor control need.
- Non-clogging proprietary Gyratory Atomizing Nozzle.
- Up to 270 degrees oscillation.
- Available in several voltages and frequencies to match available on site power.
- Uses standard municipal water pressure and common 3/4″ garden hose connection.
