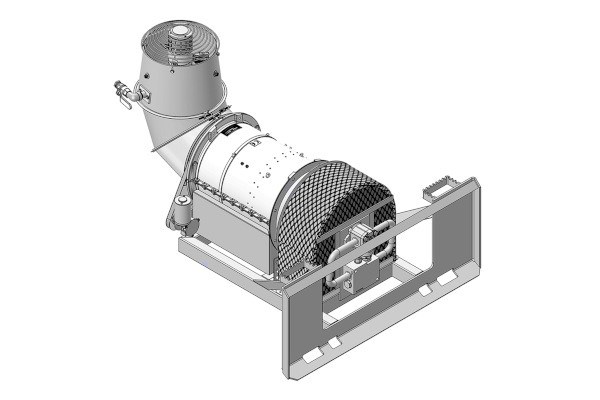

Monsoon Hydraulic
SKID
- Hydraulic Motor – Min. 16 GPM @3600RPM, Max 40 GPM
- Gyratory Atomizing Nozzle
- 360 degree Nozzle Rotation without airflow reduction
Monsoon Hydraulic Specs & Compare
| Type | Skid |
| Debris Type | Crop, Dust/Odor, Insect |
| Acreage | 1 to 3, 10+, 4 to 6, 7 to 9 |
| Input Power | Hydraulic Motor - Min. 16 GPM @3600RPM, Max 40 GPM |
| Start / Stop Control | Required minimum 2900psi hydraulic pressure |
| Nozzle Function | Wired remote |
| Nozzle Control | 360 degree |
| Remote | Wired Joy Stick Control |
| Fuel Capacity | n/a |
| Battery | n/a |
| Trailer | n/a |
| Tires | n/a |
| Mounting | SAE "A" size, 2 bolt |
| Overall Length w/ Nozzle | 64 in |
| Weight | 312 lbs (142 kg) |
| Shipping Weight | 362 lbs (165 kg) |
| Misting System | Gyratory Atomizing Nozzle |
| Hose Input | 3/4 in utility / garden hose |
| Minimum Water Volume | 1/3 gallon per minute |
| Maximum Water Volume | 20 gallons per minute @120 psi |
| Minimum Water Pressure | 40 psi |
| Maximum Water Pressure | 120 psi |
| Droplet Size | 50-200 micron |
| Throw Distance Horizontal | Up to 125 ft in neutral wind conditions |
| Throw Distance Vertical | Up to 50 ft in nuetral wind conditions |
| Machine Warranty | 10 Year Manufacturer Warranty |
| Engine / Motor Warranty | n/a |
| Prop 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Monsoon Hydraulic Features & Benefits
- The Monsoon Hydraulic is a systems solution for any dust and odor control need.
- Non-clogging Proprietary Gyratory Atomizing Nozzle.
- 360 degree nozzle rotation without airflow reduction.
- Corded remote nozzle control.
- Uses standard municipal water pressure and common 3/4″ garden hose connection.
