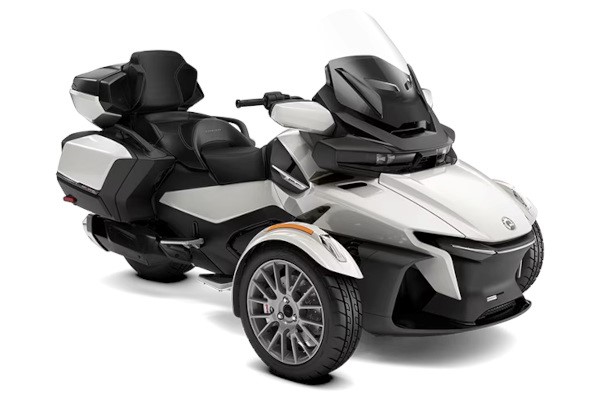

SPYDER RT LIMITED
Experience unrivaled comfort and style. The Spyder RT Limited boasts a self-leveling rear air suspension, passenger backrest, large storage capacity, heated seats, and many more features for highly enjoyable long-distance touring for two.
ENGINE
| Engine | ROTAX 1330 ACE |
|---|---|
| Engine displacement | 1330 cc |
| Type | Rotax® 1330 ACE™ in-line 3 cylinders, liquid-cooled with electronic fuel injection and electronic throttle control |
| Bore & stroke | 3.31 x 3.14 in. (84 x 80 mm) |
| Power | 115 hp (85.8 kW) @ 7250 RPM |
| Torque | 96 lb-ft. (130.1 Nm) @ 5000 RPM |
TRANSMISSION
| Type | Semi-automatic with reverse function |
|---|---|
| Gears | 6-speed |
CHASSIS
| Front suspension | Double A-arms with anti-roll bar |
|---|---|
| Front shocks type / travel | SACHS† Big-Bore shocks / 6.9 in. (174 mm) |
| Rear suspension | Swing-arm |
| Rear shocks type / travel | SACHS† Shock with self-leveling air preload adjustment / 6 in. (152 mm) |
| Electronic brake distribution system | Foot-operated, hydraulic 3-wheel brake |
| Front brakes | 270 mm discs with Brembo† 4-piston fixed calipers |
| Rear brake | 270 mm disc, 1-piston floating caliper with integrated parking brake |
| Parking brake | Electrically actuated |
| Front tires | XPS Roadster - K165/55 R15 69H (NA) |
| Rear tire | XPS Roadster - K225/50 R15 84H (NA) |
| Aluminum front rims | RT Limmited Carbon Black & Mineral Blue: 16-spoke, Carbon Black, 15 x 5 in. (381 x 127 mm) RT Limited Pearl White: 16-spoke, Hyper Silver, 15 x 5 in. (381 x 127 mm) |
| Aluminum rear rim | 6-spoke, 15 x 7 in. (381 mm x 178 mm) |
CAPACITY
| Rider capacity | 2 |
|---|---|
| Maximum vehicle load | 494 lb (224 kg) |
| Storage capacity | 47 gal (177 L) |
| Towing capacity | 400 lb (182 kg) |
| Fuel capacity | 7 gal (26.5 L) |
| Fuel Type | Premium unleaded |
DIMENSION
| Wheelbase | 67.5 in. (1,714 mm) |
|---|---|
| Seat height | 29.7 in. (755 mm) |
| Ground clearance | 4.5 in. (115 mm) |
| Dry weight | 1,021 lb (464 kg) |
INSTRUMENTATION
| Type | 10.25 in. touchscreen display with BRP Connect and Apple CarPlay |
|---|---|
| Main Functions | Speedometer, tachometer, odometer, trip and hour meters, fuel consumption average, gear position, ECO mode smart assist, temperature, engine lights, electronic fuel gauge, clock and more. |
| Audio System | BRP Audio Premium 6-speaker sound system with radio, USB, Bluetooth† |
DIMENSIONS/CAPACITIES
| L x W x H | 111.5 x 61.2 x 57.6 in. (2,833 x 1,554 x 1,464 mm) |
|---|
SAFETY AND SECURITY
| SCS | Stability Control System |
|---|---|
| TCS | Traction Control System |
| ABS | Anti-lock Braking System |
| DPS | Dynamic Power Steering |
| Anti-theft system | Digitally Encoded Security System (D.E.S.S.™) |
| HHC | Hill Hold Control |
COVERAGE
| Factory Warranty | 2-year BRP Limited Warranty with 2-year roadside assistance |
|---|---|
| Extended Service Terms | B.E.S.T. extended service term available from 12 to 36 months. |
FEATURES
| Features | 10.25 in. touchscreen display with BRP Connect and Apple CarPlay Premium LED headlights Rider touring floorboards Adjustable passenger footboards Ultra comfortable limited seat with lumbar support Handlebar control module Glove box with USB Cruise control Integrated hard-side luggage Adjustable electric windshield with memory Calibrated for towing a Can-Am trailer Signature LED lights Driver and passenger heated grips Driver and passenger heated seats LinQ compatible top case with passenger backrest |
|---|
Comfort for long distance
The perfect touring vehicle
Always aim for more with the comfort and ergonomics of the Spyder RT. Its comfortable setup, lumbar support, cushy seat, impressive floorboard and convenient electric windshield let you enjoy the ride without compromise.
Smart. Simple. All there.
10.25" touchscreen display
The massive 10.25" touchscreen puts vehicle info and features front and center, while handlebar controls offer easy access to music, apps, voice assistant and more, all through Apple CarPlay.
Carry More. Go Further.
Ample cargo space
Spyder RTs have extensive storage capacity of at least 31 gallons (117 L), so you can bring the comforts of home on extended journeys, and they’re compatible with LinQ to switch storage accessories in seconds.
Shifts like it reads your mind
6-speed semi-automatic transmission
Enjoy shifting gears in a snap with an index finger and thumb control paddle shifter—or just cruise. The hydraulic clutch offers a perfect balance of comfort and fuel economy.
Own every direction
Enhanced visibility with an on-screen camera
Backing up is a breeze with the Spyder RT’s massive 10.25" display, featuring a rearview camera and guiding lines. Standard on the Sea-to-Sky, available as an accessory on other RT models.
