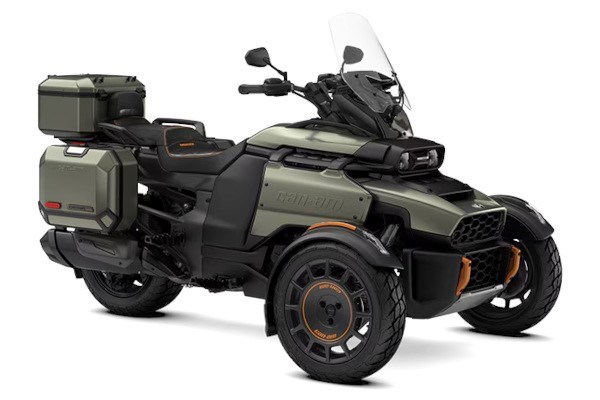

Canyon Redrock
The Canyon Redrock is the premium package for a unique adventure experience. Exclusive design, backup camera, a customizable driving mode and SMART-SHOX semi-active suspension for a comfortable, adventurous ride on all types of road.
ENGINE
| Engine | ROTAX 1330 ACE |
|---|---|
| Engine displacement | 1330 cc |
| Type | Rotax® 1330 ACE™ in-line 3 cylinders, liquid-cooled with electronic fuel injection and electronic throttle control |
| Bore & stroke | 3.31 x 3.14 in. (84 x 80 mm) |
| Power | 115 hp (85.8 kW) @ 7250 RPM |
| Torque | 96 lb-ft. (130.1 Nm) @ 5000 RPM |
TRANSMISSION
| Type | Semi-automatic with reverse function |
|---|---|
| Gears | 6-speed |
CHASSIS
| Front suspension | Double A-arms with anti-roll bar |
|---|---|
| Front shocks type / travel | KYB Piggyback Smart-Shox / 10.2 in. (260 mm) |
| Rear suspension | Swing-arm |
| Rear shocks type / travel | KYB Smart-Shox with self-leveling air preload adjustment / 9.2 po (235 mm) |
| Electronic brake distribution system | Foot-operated, hydraulic 3-wheel brake |
| Front brakes | 270 mm discs with Brembo† 4-piston fixed calipers |
| Rear brake | 270 mm disc, 1-piston floating caliper with integrated parking brake |
| Parking brake | Electrically actuated |
| Front tires | XPS Adventure - K155/65 R16 72H |
| Rear tire | XPS Adventure - K225/50 R15 84H |
| Aluminum front rims | 12-spoke, Carbon Black / Alloy Orange ,16 X 5 in. (406 X 127 mm) |
| Aluminum rear rim | 6-spoke, 15 x 7 in. (381 mm x 178 mm) |
CAPACITY
| Rider capacity | 2 |
|---|---|
| Maximum vehicle load | 617 lb ( 280 kg) |
| Storage capacity | 31.86 gal (120,6 L) |
| Towing capacity | 400 lbs (181 kg ) |
| Fuel capacity | 7.1 gal (27 L) |
| Fuel Type | Premium unleaded |
DIMENSION
| Wheelbase | 67.6 in. (1718 mm) |
|---|---|
| Seat height | 33.2 in. (843 mm) |
| Ground clearance | 6.3 in. (160mm) |
| Dry weight | 470 kg (1036 lbs) |
INSTRUMENTATION
| Type | 10.25 in. touchscreen display with BRP Connect and Apple CarPlay |
|---|---|
| Main Functions | Speedometer, tachometer, odometer, trip and hour meters, fuel consumption avg, gear position, Drive Modes, Custom Mode, temperature, engine lights, electronic fuel gauge, clock and more. |
| Audio System | USB, Bluetooth† |
DIMENSIONS/CAPACITIES
| L x W x H | 100.3 X 62.2 X 59 in. (2547 X 1581 X 1500 mm) |
|---|
SAFETY AND SECURITY
| SCS | Stability Control System |
|---|---|
| TCS | Traction Control System |
| ABS | Anti-lock Braking System |
| DPS | Dynamic Power Steering |
| Anti-theft system | Digitally Encoded Security System (D.E.S.S.™) |
| HHC | Hill Hold Control |
COVERAGE
| Factory Warranty | 2-year BRP Limited Warranty with 2-year roadside assistance |
|---|---|
| Extended Service Terms | B.E.S.T. extended service term available from 12 to 36 months. |
FEATURES
| Features | LED headlights Metal radiator grille Adjustable windshield Phone compartment with USB port Handguards Integrated LinQ attachment points Cruise control Enduro anti-slip pegs Adjustable Drive modes Belt protector 5.6 in (143 mm) handlebar riser Aluminum top and side cases Driver and passenger heated grips Passenger backrest Self-leveling rear air suspension Comfort pegs Front skid plate Comfort seat Backup camera Smart-Shox semi-active supension Custom Drive Mode |
|---|
LinQ up and roll out
Switch up your setup in seconds
Swap in a wide range of accessories in seconds with the tool-free, easy-to-use LinQ system. Whether it’s pavement or gravel ahead, the Canyon is ready to adapt.
Smart & Simple
10.25" touchscreen display
The Canyon’s 10.25" touchscreen puts key info and features at your fingertips. With handlebar controls, switch drive modes, use Apple CarPlay, voice commands, and more.
Ready for whatever lies ahead
4 driving modes for any adventure
The Canyon lineup is versatile, user-friendly and adapts to every road, paved or unpaved. Choose between Rally, All-Road, Sport and Normal drive modes so your ride matches your style at every turn.
Change gears without a clutch
6-speed semi-automatic transmission
Riding the Canyon is as easy as it is thrilling. With a reverse function and semi-automatic 6-speed transmission, gear shifting is effortless—just press a button and off you go!
Activate the Smart-Shox
Canyon shocks respond to your ride
The Canyon Redrock has high-capacity, exclusive KYB shocks and a system of sensors with a body control module that adapts to terrain and vehicle movements, providing an optimal ride in any conditions.
