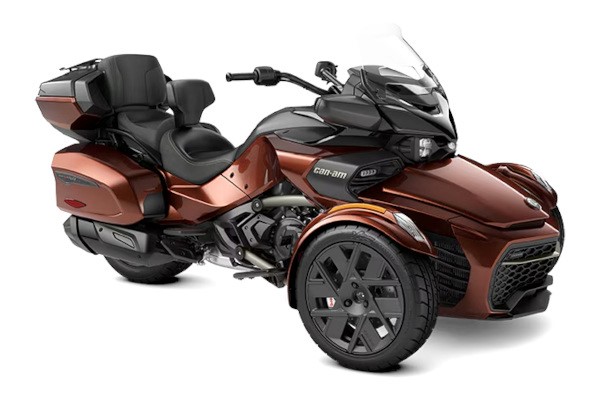

SPYDER F3 LIMITED SPECIAL SERIES
The Spyder F3 Limited Special Series combines unparalleled comfort and great convenience with a bold muscular look and sporty design. This ride makes every roadtrip unforgettable.
ENGINE
| Engine | ROTAX 1330 ACE |
|---|---|
| Engine displacement | 1330 cc |
| Type | Rotax® 1330 ACE™ in-line 3 cylinders, liquid-cooled with electronic fuel injection and electronic throttle control |
| Bore & stroke | 3.31 x 3.14 in. (84 x 80 mm) |
| Power | 115 hp (85.8 kW) @ 7250 RPM |
| Torque | 96 lb-ft. (130.1 Nm) @ 5000 RPM |
TRANSMISSION
| Type | Semi-automatic with reverse function |
|---|---|
| Gears | 6-speed |
CHASSIS
| Front suspension | Double A-arms with anti-roll bar |
|---|---|
| Front shocks type / travel | SACHS† Big-Bore shocks with preload adjustment / 5.1 in. (129 mm) |
| Rear suspension | Swing-arm |
| Rear shocks type / travel | SACHS Shock with self-leveling air preload adjustment / 5.2 in. (132 mm) |
| Electronic brake distribution system | Foot-operated, hydraulic 3-wheel brake |
| Front brakes | 270 mm discs with Brembo† 4-piston fixed calipers |
| Rear brake | 270 mm disc, 1-piston floating caliper with integrated parking brake |
| Parking brake | Electrically actuated |
| Front tires | XPS Roadster - K165/55 R15 69H (NA) |
| Rear tire | XPS Roadster - K225/50 R15 84H (NA) |
| Aluminum front rims | RIDGE, Carbon Black , 15 x 5 in. (381 x 127 mm) |
| Aluminum rear rim | 6-spoke, 15 x 7 in. (381 mm x 178 mm) |
CAPACITY
| Rider capacity | 2 |
|---|---|
| Maximum vehicle load | 439 lb (199 kg) |
| Storage capacity | 36.8 gal (139.5 L) |
| Towing capacity | 400 lb (182 kg) |
| Fuel capacity | 7.1 gal (27 L) |
| Fuel Type | Premium unleaded |
DIMENSION
| Wheelbase | 67.3 in. (1,709 mm) |
|---|---|
| Seat height | 26.6 in. (675 mm) |
| Ground clearance | 4.5 in. (115 mm) |
| Dry weight | 988 lb (448 kg) |
INSTRUMENTATION
| Type | 10.25 in. touchscreen display with BRP Connect and Apple CarPlay |
|---|---|
| Main Functions | Speedometer, tachometer, odometer, trip and hour meters, fuel consumption average, gear position, ECO mode smart assist, temperature, engine lights, electronic fuel gauge, clock and more. |
| Audio System | BRP Audio Premium 6-speaker sound system with radio, USB, Bluetooth† |
DIMENSIONS/CAPACITIES
| L x W x H | 111.0 x 58.9 x 48.9 in. (2,820 x 1,497 x 1,241 mm) |
|---|
SAFETY AND SECURITY
| SCS | Stability Control System |
|---|---|
| TCS | Traction Control System |
| ABS | Anti-lock Braking System |
| DPS | Dynamic Power Steering |
| Anti-theft system | Digitally Encoded Security System (D.E.S.S.™) |
| HHC | Hill Hold Control |
COVERAGE
| Factory Warranty | 2-year BRP Limited Warranty with 2-year roadside assistance |
|---|---|
| Extended Service Terms | B.E.S.T. extended service term available from 12 to 36 months. |
FEATURES
| Features | LED headlights Front fender with integrated LED lights Cruise control Handlebar control module Sport windshield Calibrated for to 400 lbs Glove box with USB (1 gal / 3.9 L) Integrated hard-side luggage Top case with integrated passenger backrest (22 L / 5.8 gal) Driver and passenger heated grip Driver and passenger footboards Short reach handlebar Top case rack Adjustable driver backrest Comfort seat Backup camera LED fog lights |
|---|
Cruiser-type vehicle
A relaxed riding position
A cruiser-inspired 3-wheel vehicle, the F3 provides a relaxed cruising position with peg and handlebar position options (UFIT system). Ride in comfort and style with the muscular and bold design of the Spyder F3 family.
MIGHTY MOTOR
The powerful 115 HP Rotax® 1330 ACE Engine
The Rotax 1330 ACE engine balances power and fuel efficiency, with liquid cooling that regulates temperature, reducing engine heat. The electronic throttle offers exact fuel delivery for a smooth acceleration.
10.25" touchscreen display
Get essential info with Apple CarPlay
The redesigned 10.25" touchscreen gives you vehicle info, fully customized settings, and Apple CarPlay compatible apps like Maps, etc. Handlebar controls are integrated so everything is at your fingertips.
Effortless Shifting
Standard semi-automatic transmission
Shift your way with index finger & thumb control paddle shifter. The Semi-Automatic transmission doesn't require a clutch lever and offers the perfect balance of comfort and fuel economy.
Reverse Mode camera
Back up with confidence
Reversing made easy with an on-screen camera and guiding static lines. Available on the Spyder F3 Special Series and as an essential accessory for almost all models with the 10.25” touchscreen display.
*Except Spyder F3-S.
