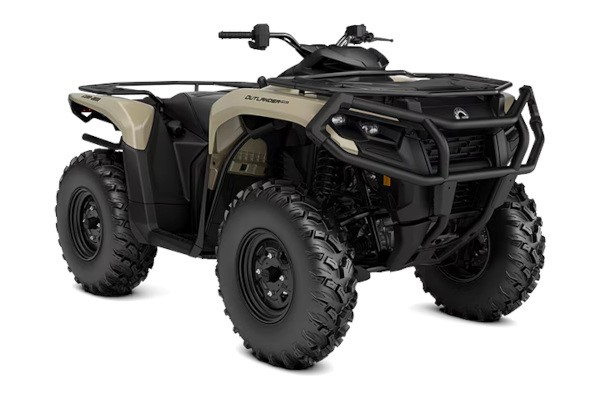

Outlander PRO HD5/HD7
JACK OF ALL TRADES. The ATV you need to get the job done, with exceptional capabilities and less maintenance required—all at a price that’s too good to pass up.
ENGINE
| Engine | HD5 HD7 |
|---|---|
| Engine displacement | 650 |
| Type | HD5: 40 hp / 37 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc, single cylinder, liquid cooled HD7: 50 hp / 41 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc, single cylinder, liquid cooled |
| Transmission | pDrive primary CVT with work calibration Extra low L / H / N / R / P |
| Drive Train | Selectable 2WD / 4WD with Visco-Lok† auto-locking front differential |
| Driving Assistance | HD5: Speed limiter HD7: Work / Standard / Sport modes Intelligent Engine Braking (iEB™) Speed limiter |
SUSPENSION
| Front Suspension | Double A-arm 9.75 in. (24.8 cm) travel |
|---|---|
| Front Shocks | Twin tube |
| Rear Suspension | Double A-arm 10.25 in. (26 cm) travel |
| Rear Shocks | Twin tube |
| Suspension | Standard |
TIRES/WHEELS
| Front Tires | 6-ply rating 26 x 8/10 x 12 in. |
|---|---|
| Rear Tires | 6-ply rating 26 x 8/10 x 12 in. |
| Wheels | 12 in. Steel |
BRAKES
| Front | Dual 214 mm disc brakes with hydraulic twin-piston calipers |
|---|---|
| Rear | Single 214 mm disc brakes with hydraulic twin-piston caliper |
| Brakes | Standard |
DIMENSIONS/CAPACITIES
| L x W x H | 89.9 x 48.8 x 48.2 in. (228.4 x 123.9 x 122.5 cm) |
|---|---|
| Ground Clearance | 13 in. (33 cm) |
FEATURES
| Gauge | 4.5 in. digital display |
|---|---|
| Winch | N/A |
| Protection | Heavy duty front bumper, Rear bumper, HMWPE front and rear A-Arm protection (5 mm), Full skid plate |
Work calibrated Rotax® engines
Tough Enough for Anything
The Outlander PRO lineup’s new Rotax® engines have been tuned specifically to give you more power with less noise and vibration. And they’re now angled towards the rear for better airflow and heat dissipation, plus a more comfortable ride. Time to punch in.
Available in all packages
Utility-calibrated suspension
Go Ahead. Pile It On.
The Outlander PRO comes with a specially calibrated suspension to give you the stability you need to haul the heaviest loads. Work smarter, not harder with the Outlander PRO.
Available in all packages
Protective Features for your 9 to 5
Never Shy Away From Hard Work
From utility bumpers and 6-ply rating tires, to a central skidplate and HMWPE Footwells, the Outlander PRO offers all the protection features you need, to keep you and your vehicle protected through the toughest of tasks.
Available in all packages
Lower Maintenance intervals
So you can see the job through
The pDrive clutch is field-proven to go 3 times longer between maintenance intervals. That’s a valve adjustment only once every 6,000 miles. And the new panel design makes DIY upkeep a cakewalk. The Outlander PRO is made to be there, through thick and thin.
Available in all packages
