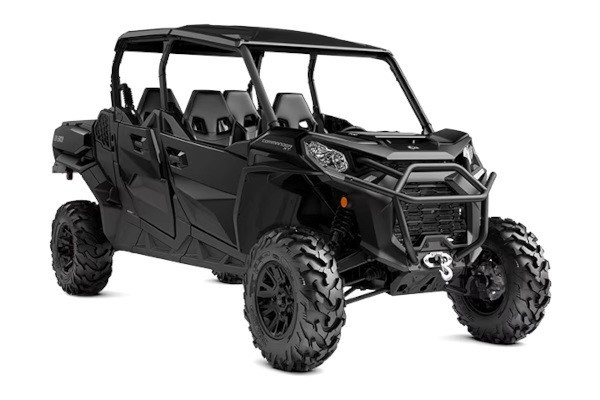

Commander MAX XT
THE LEADER. Need to bring the crew along? The Commander MAX XT has room for them all, along with the full suite of features in the XT. From an XT front bumper to arched double A-arm and TTA suspension, you'll have to test it to believe it.
ENGINE
| Engine | 1000R 700 |
|---|---|
| Engine displacement | 1000 700 |
| Type | 1000R: 100 hp, Rotax® 976 cc, V-twin, liquid cooled 700: 52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled |
| Transmission | 1000R: Quick Response System (QRS) CVT with high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P 700: pDrive primary CVT with engine braking and Electronic Drive Belt Protection L / H / N / R / P |
| Drive Train | 1000R: Selectable Turf Mode / 2WD / 4WD auto-locking QE front differential 700: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential |
| Driving Assistance | CVT Engine Braking SPORT / ECO™ modes |
SUSPENSION
| Front Suspension | 1000R: Arched double A-arm with sway bar / 15 in. (38.1 cm) suspension travel 700: Double A-arm with sway bar / 12.5 in. (31.8 cm) suspension travel |
|---|---|
| Front Shocks | Twin tube gas charged shocks |
| Rear Suspension | 1000R: Arched TTA with sway bar / 15 in. (38.1 cm) suspension travel 700: TTA with sway bar / 13 in. (33 cm) suspension travel |
| Rear Shocks | Twin tube gas charged shocks |
| Suspension | Standard |
TIRES/WHEELS
| Front Tires | XPS Trail King 28 x 9/11 x 14 in. |
|---|---|
| Rear Tires | XPS Trail King 28 x 9/11 x 14 in. |
| Wheels | 14 in. cast-aluminum |
BRAKES
| Front | Dual 220 mm disc brakes with hydraulic twin-piston calipers |
|---|---|
| Rear | Dual 220 mm disc brakes with hydraulic twin-piston calipers |
| Brakes | Standard |
DIMENSIONS/CAPACITIES
| L x W x H | 160.4 x 64 x 76.2 in. (407.4 x 162.6 x 193.5 cm) |
|---|---|
| Ground Clearance | 13 in. (33 cm) |
FEATURES
| Gauge | 7.6 in. wide digital display with keypad |
|---|---|
| Winch | 4,500 lb (2,041 kg) winch with synthetic cable |
| Protection | Premium half doors, Full heavy-duty HMW plastic skid plate, Mudguards, XT Front bumper, Full roof |
Rear engine design
700 and 1000R engine options
Hit the ground running with a quieter, smoother, yet legendary ride. Everything you expect from a Can-Am. Standard SPORT and ECO™ drive modes let you adjust engine and transmission response. There's no stopping you now.
Available in all packages
Best-in-class bed load capacity
And class leading 2000 lbs (907.2 kg) towing capacity
With a towing capacity increased to an astounding 2000-lb (907.2 kg) and a category leading 29.5 x 45.2 x 10.6 in. cargo box capacity, the Commander is a powerhouse with the largest dumping cargo box in the segment to move dirt, mulch and rock around your property.
Available in all packages
Take the seat of power
Quieter cockpit and enhanced protection
It’s what’s inside that counts. The new rider-focused interior has comfortable and secure bucket seats for up to four rugged riders, adjustable driver's seat, wider opening doors, tilt steering wheel, plus premium half-door. Ladies and gentlemen, take your seats.
Available in all packages
Accessories that Count
Versatile and adaptable design
Easily add or swap accessories for any adventure under the sun (or moon!) Fight with straps and ropes? No way: keep bed cargo securely in place with built-in LinQ mounting points. This also means standard side cargo box storage, & high-powered 650W magneto for electrical upgrades--stereo, lighting, plows, and more.
