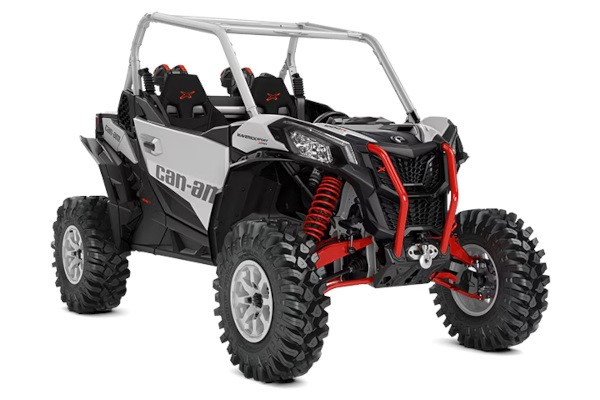

Maverick Sport X MR
FUN FOR THE DEPTHS. Haul through the mud: the 100 horsepower, Smart-Lok™, and 64 in. wide high-clearance suspension are your keys to ruling muddy, challenging terrain.
ENGINE
| Engine | 1000R |
|---|---|
| Engine displacement | 1000 |
| Type | 100 hp, Rotax® 976 cc, V-twin, liquid cooled with strategically positioned engine air intake |
| Transmission | Quick Response System (QRS) CVT with high airflow ventilation. Strategically positioned CVT air intakes and exhaust. Lower gearing ratio and Electronic Drive Belt Protection Extra-L / H / N / R / P |
| Drive Train | Lockable front differential with exclusive Smart-Lok* technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD MUD / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry |
| Driving Assistance | CVT Engine Braking SPORT / ECO™ modes |
SUSPENSION
| Front Suspension | Arched double A-arm with sway bar / 14.8 in. (37.6 cm) suspension travel |
|---|---|
| Front Shocks | FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment |
| Rear Suspension | Arched TTA with sway bar / 14.8 in. (37.6 cm) suspension travel |
| Rear Shocks | FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment |
| Suspension | Standard |
TIRES/WHEELS
| Front Tires | XPS Swamp Force 30 x 9/11 x 14 in. |
|---|---|
| Rear Tires | XPS Swamp Force 30 x 9/11 x 14 in. |
| Wheels | 14 in. cast-aluminum |
BRAKES
| Front | Dual 220 mm disc brakes with hydraulic twin-piston calipers |
|---|---|
| Rear | Dual 220 mm disc brakes with hydraulic twin-piston calipers |
| Brakes | Standard |
DIMENSIONS/CAPACITIES
| L x W x H | 122 x 64 x 74.25 in. (309.8 x 162.6 x 188.6 cm) |
|---|---|
| Ground Clearance | 15 in. (38.1 cm) |
FEATURES
| Gauge | 7.6 in. wide digital display with keypad |
|---|---|
| Winch | 4,500 lb (2,041 kg) winch with synthetic rope |
| Protection | Integrated front steel bumper, Premium half doors, Full heavy-duty HMW plastic skid plate, Mudguards, Fender flare extensions, Front tow hook |
Tech That Counts
Smart-Lok™ Technology
Most advanced off-road front differential, period. Fully lockable on-the-fly, with four electronically-controlled automatic modes that always return maximum traction in every condition. Choose between 2WD / 4WD with front diff. lock / 4WD TRAIL, and benefit from the 4WD MUD on the X mr, 4WD ROCK on the X rc.
*Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry.
Available X-Package
Factory-fitted X-package upgrades
With LED headlights, exclusive coloration & full exterior protection, the X-Package adds another dimension to the Maverick Sport models. Include unique graphics and seats, plus features from FOX† 2.5 PODIUM Piggyback shocks with QS3† to full skid plate and Smart-Lok.
Next Level Handling
FOX Racing Shocks
Built with the best for complete balance on fast & challenging terrain. Choose our premium FOX Racing shocks. For X packages, suspension is upgraded to FOX 2.5 PODIUM shocks with QS3 compression adjustment and up to 15 in. of ground clearance.
Truly Useful Displays
4.5 / 7.6-in digital display with keypad
Everything you need to control for the perfect ride. The 4.5 and 7.6-in wide digital display options are readable in all conditions, with vehicle information and controls at your glovetips.
Available in all packages
