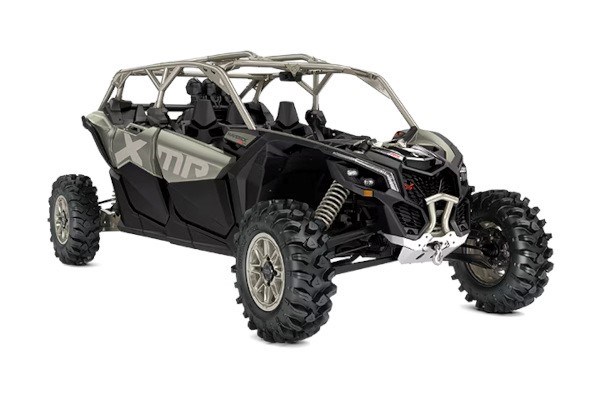

Maverick X3 MAX X MR TURBO RR 72
FOR THE DEEP. Now with the Smart-Lok™ front differential and mud-specific tuning to haul you through the roughest challenges, it's the widest Maverick with 22 in. of suspension travel and armored 32 in. ITP Cryptid tires for the ultimate in mud performance
ENGINE
| Engine | TURBO RR |
|---|---|
| Engine displacement | 900 |
| Type | 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler, high-performance air filter and strategically positioned engine air intake |
| Transmission | pDrive primary and Quick Response System X (QRS-X) CVT, high airflow with strategically positioned CVT air intake and exhaust, L / H / N / R / P |
| Drive Train | Lockable front differential with exclusive Smart-Lok* technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD MUD / 4WD TRAIL |
SUSPENSION
| Front Suspension | Arched Double A-arm with sway bar / 22 in. (55.9 cm) suspension travel Trophy truck inspired arms |
|---|---|
| Front Shocks | FOX† 2.5 PODIUM Piggyback with QS3† compression adjustment |
| Rear Suspension | 4-link Torsional Trailing-arm X (TTX) with sway bar and arched lower links / 22 in. (55.9 cm) suspension travel |
| Rear Shocks | FOX† 2.5 PODIUM Piggyback with QS3†compression adjustment and bottom-out control |
| Suspension | Standard |
TIRES/WHEELS
| Front Tires | XPS Swamp King 30 x 10 x 15 in. |
|---|---|
| Rear Tires | XPS Swamp King 30 x 10 x 15 in. |
| Wheels | 15 in. cast-aluminum |
BRAKES
| Front | Dual 262 mm disc brakes with hydraulic twin-piston calipers |
|---|---|
| Rear | Dual 248 mm disc brakes with hydraulic twin-piston calipers |
| Brakes | Standard |
DIMENSIONS/CAPACITIES
| L x W x H | 165 x 74.2 x 68 in. (419.1 x 188.5 x 172.7 cm) |
|---|---|
| Ground Clearance | 16 in. (40.6 cm) |
FEATURES
| Gauge | 7.6 in. digital display with keypad |
|---|---|
| Winch | 4,500 lb (2,041 kg) winch with synthetic cable |
| Protection | Front bumper, Half-doors, Front and rear tow hooks, Full heavy-duty HMW plastic skid plate |
Connected Ride
Everything you need at your fingertips
Use the new offline group riding on the built-in GPS or more advanced navigation with the BRP GO! app. Download software updates over-the-air via Wi-Fi. Easily control accessories directly from the display.
Innovative Suspension Setup
Arched double A-Arm / Torsional Trailing-Arm X (TTX)
With double A-Arm throughout the lineup, strength comes standard. All 72 in. wide models benefit from a Trophy-Truck inspired suspension design. Our X rc and X mr models also boast arched double A-arms for maximum ground clearance.
Wheels & Tires
High-performance wheels and tires
Equipped to go the distance and get the most from the Maverick X3, anywhere. Each Maverick X3 package gets a unique setup, from staggered 30 in. ITP Cryptid† mud-ready tires, to the legendary 32 in. Maxxis Carnivore† tires with beadlock wheels.
Available in all packages
Strength Is Power
Reinforced frame and A-arm protection
Top engines, and customers, expect the strongest platforms that don’t back down. Here comes an ultra-efficient and lightweight chassis that's bulletproof to any riding style. We’re not talking gravel. Bound over boulders, trounce through dunes without a care in the rugged, craggy world.
Available in all packages
Comes through in the clutch
Reliable clutch and CVT
The Can-Am Maverick X3 features the innovative pDrive clutch with rollers for reduced wear and the latest pDrive primary and QRS-X CVT technology with high airflow for a drive like no other.
