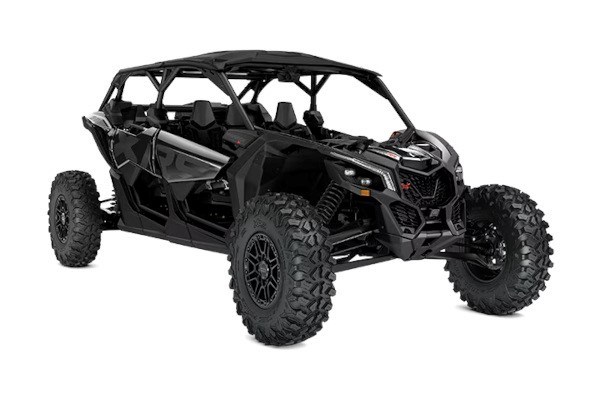

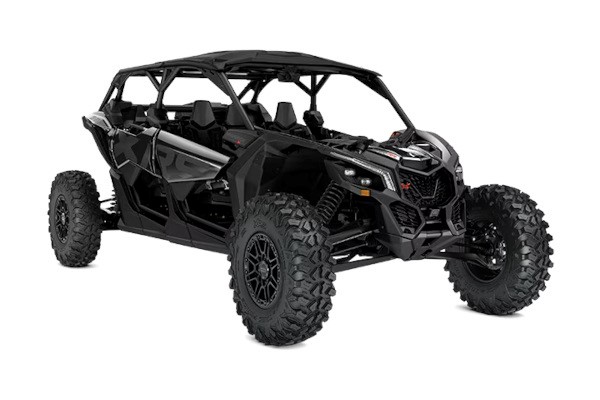

Maverick X3 MAX X RS TURBO RR
LEGENDS NEVER STAND STILL. Run at the front of any pack with 3 of your friends, 200 horsepower & Smart-Lok™ differential featuring Trail Activ mode.
ENGINE
| Engine | TURBO RR |
|---|---|
| Engine displacement | 900 |
| Type | 200 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled with integrated intercooler and high-performance air filter |
| Transmission | pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P |
| Drive Train | Lockable front differential with exclusive Smart-Lok* True 2WD/4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL |
SUSPENSION
| Front Suspension | Arched Double A-arm with sway bar / 22 in. (55.9 cm) suspension travel Trophy truck inspired arms |
|---|---|
| Front Shocks | SHOWA HPG piggyback 2.5 (dual-speed Compression, Dual-rate spring) |
| Rear Suspension | 4-link Torsional Trailing-arm X (TTX) with sway bar / 22 in. (55.9 cm) suspension travel |
| Rear Shocks | SHOWA HPG piggyback 2.5 (dual-speed Compression, Dual-rate spring) |
| Suspension | Standard |
TIRES/WHEELS
| Front Tires | XPS Trac Force 30 x 10 x 14 in. |
|---|---|
| Rear Tires | XPS Trac Force 30 x 10 x 14 in. |
| Wheels | 14 in. cast-aluminum |
BRAKES
| Front | Dual 262 mm disc brakes with hydraulic twin-piston calipers |
|---|---|
| Rear | Dual 248 mm disc brakes with hydraulic twin-piston calipers |
| Brakes | Standard |
DIMENSIONS/CAPACITIES
| L x W x H | 164 x 72.4 x 68.5 in. (416.6 x 183.9 x 174 cm) |
|---|---|
| Ground Clearance | 16 in. (40.6 cm) |
FEATURES
| Gauge | 4.5 in. digital display with keypad |
|---|---|
| Winch | N/A |
| Protection | Integrated front bumper, Quarter-doors, Full heavy-duty HMW plastic skid plate, Rear tow hook |
Connected Ride
Everything you need at your fingertips
Use the new offline group riding on the built-in GPS or more advanced navigation with the BRP GO! app. Download software updates over-the-air via Wi-Fi. Easily control accessories directly from the display.
Innovative Suspension Setup
Arched double A-Arm / Torsional Trailing-Arm X (TTX)
With double A-Arm throughout the lineup, strength comes standard. All 72 in. wide models benefit from a Trophy-Truck inspired suspension design. Our X rc and X mr models also boast arched double A-arms for maximum ground clearance.
Wheels & Tires
High-performance wheels and tires
Equipped to go the distance and get the most from the Maverick X3, anywhere. Each Maverick X3 package gets a unique setup, from staggered 30 in. ITP Cryptid† mud-ready tires, to the legendary 32 in. Maxxis Carnivore† tires with beadlock wheels.
Available in all packages
Strength Is Power
Reinforced frame and A-arm protection
Top engines, and customers, expect the strongest platforms that don’t back down. Here comes an ultra-efficient and lightweight chassis that's bulletproof to any riding style. We’re not talking gravel. Bound over boulders, trounce through dunes without a care in the rugged, craggy world.
Available in all packages
Comes through in the clutch
Reliable clutch and CVT
The Can-Am Maverick X3 features the innovative pDrive clutch with rollers for reduced wear and the latest pDrive primary and QRS-X CVT technology with high airflow for a drive like no other.
