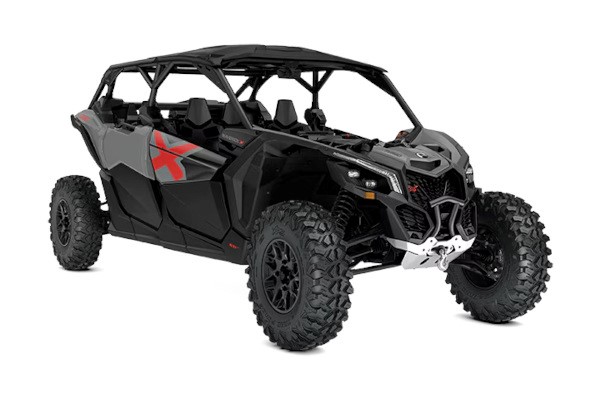

Maverick X3 MAX X Turbo
This premier all-inclusive package is engineered for trail enthusiasts—perfect for you and your passengers. Unleash turbo power and wild thrills.
ENGINE
| Engine | TURBO |
|---|---|
| Engine displacement | 900 |
| Type | 135 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-performance air filter |
| Transmission | pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P |
| Drive Train | Lockable front differential with exclusive Smart-Lok* True 2WD/4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL |
SUSPENSION
| Front Suspension | Arched Double A-arm with sway bar / 20 in. (50.8 cm) suspension travel |
|---|---|
| Front Shocks | FOX† 2.5 PODIUM RC2† Piggyback with dual-speed compression and rebound adjustments |
| Rear Suspension | 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) suspension travel |
| Rear Shocks | FOX† 2.5 PODIUM RC2† Piggyback with dual-speed compression, rebound adjustments and bottom-out control |
| Suspension | Standard |
TIRES/WHEELS
| Front Tires | XPS Trac Force 30 x 10 x 14 in. |
|---|---|
| Rear Tires | XPS Trac Force 30 x 10 x 14 in. |
| Wheels | 14 in. cast-aluminum |
BRAKES
| Front | Dual 262 mm disc brakes with hydraulic twin-piston calipers |
|---|---|
| Rear | Dual 248 mm disc brakes with hydraulic twin-piston calipers |
| Brakes | Standard |
DIMENSIONS/CAPACITIES
| L x W x H | 164 x 64 x 66 in. (416.6 x 162.5 x 167.6 cm) |
|---|---|
| Ground Clearance | 13 in. (33 cm) |
FEATURES
| Gauge | 4.5 in. wide digital display with keypad & 10.25 in. touchscreen display |
|---|---|
| Winch | 4,500 lb (2,041 kg) winch with synthetic cable |
| Protection | Panoramic mirror, Front and rear cameras, Full heavy-duty HMW plastic skid plate, Quarter doors color match with filler, Full hard roof, Front bumper |
Connected Ride
Everything you need at your fingertips
Use the new offline group riding on the built-in GPS or more advanced navigation with the BRP GO! app. Download software updates over-the-air via Wi-Fi. Easily control accessories directly from the display.
Innovative Suspension Setup
Arched double A-Arm / Torsional Trailing-Arm X (TTX)
With double A-Arm throughout the lineup, strength comes standard. All 72 in. wide models benefit from a Trophy-Truck inspired suspension design. Our X rc and X mr models also boast arched double A-arms for maximum ground clearance.
Wheels & Tires
High-performance wheels and tires
Equipped to go the distance and get the most from the Maverick X3, anywhere. Each Maverick X3 package gets a unique setup, from staggered 30 in. ITP Cryptid† mud-ready tires, to the legendary 32 in. Maxxis Carnivore† tires with beadlock wheels.
Available in all packages
Strength Is Power
Reinforced frame and A-arm protection
Top engines, and customers, expect the strongest platforms that don’t back down. Here comes an ultra-efficient and lightweight chassis that's bulletproof to any riding style. We’re not talking gravel. Bound over boulders, trounce through dunes without a care in the rugged, craggy world.
Available in all packages
Comes through in the clutch
Reliable clutch and CVT
The Can-Am Maverick X3 features the innovative pDrive clutch with rollers for reduced wear and the latest pDrive primary and QRS-X CVT technology with high airflow for a drive like no other.
