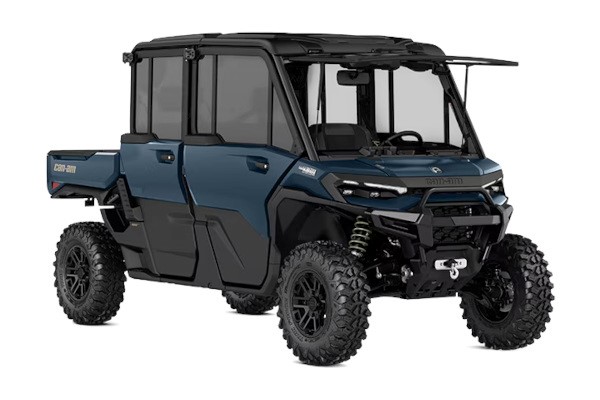

Model Defender MAX Limited HD11

Defender MAX Limited HD11

  • Get a Quote Request Brochure
  • Send to a Friend
  • Payment Calculator
  • Get information on the Defender MAX Limited HD11

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Request Brochure

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the Defender MAX Limited HD11

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Defender MAX Limited HD11 Specs & Compare

ENGINE

EngineHD11
Engine displacement999
Type95 hp / 70 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
TransmissionpDrive primary and Quick Response System X (QRS-X) CVT with high airflow and Electronic Drive Belt Protection L / H / N / R / P
Drive TrainSelectable Turf Mode / 2WD / 4WD with exclusive Smart-Lok*
Driving AssistanceCVT Engine Braking Sport / Normal / Work modes Speed Limiter

SUSPENSION

Front SuspensionArched Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel
Front ShocksTwin tube gas charged shocks
Rear SuspensionArched Double A-Arm / 12 in. (30.5 cm) suspension travel
Rear ShocksTwin tube gas charged shocks
SuspensionStandard

TIRES/WHEELS

Front TiresXPS Trac Force 30 x 9/10 x 15 in.
Rear TiresXPS Trac Force 30 x 9/10 x 15 in.
Wheels15 in. cast-aluminum

BRAKES

FrontDual 262 mm disc brakes with hydraulic twin-piston calipers (32 mm)
RearDual 236 mm disc brakes with hydraulic twin-piston calipers (28 mm)
BrakesStandard

DIMENSIONS/CAPACITIES

L x W x H162.4 x 65 x 81.4 in. (412 x 165 x 207 cm)
Ground Clearance14 in. (35.6 cm)

FEATURES

Gauge4.5 in. wide digital display with keypad & 10.25 in. touchscreen display
Winch4,500 lb (2,041 kg) winch with synthetic cable and autostop
ProtectionFull glass tilt up windshield with wiper kit, Full color match front doors with locks and electric opening tinted windows, Rear color match doors with roll down window, Rear tinted glass window, Panoramic mirror, Full heavy-duty HMW plastic skid plate, Full hard roof with liner and dome light, Large heavy-duty front bumper, Mudguards, Floor mats
Defender MAX Limited HD11 Features & Benefits

Connected Ride

Everything you need at your fingertips

Added situational awareness with a clear view of rear and front* camera angles. Easily control accessories from the display. Manage media within the applet on your touchscreen.

Available on certain models

Refined Power Delivery

New work-tuned HD11 engine

The new 999cc inline-3 HD11 engine delivers 95 HP and 70 lb-ft of torque. Paired with a smooth-shifting transmission, pDrive, and Quick-4Lok or Smart-Lok front diff, it’s built for control and drivability.

Best-in-Class Utility Features

Class-leading clearance, cargo, towing

With exceptional ground clearance, long suspension travel, serious towing and cargo capacity, and reduced NVH, this Defender is built to lead—on the job, off-road, and everywhere in between.

Advanced HVAC & Enclosure System

Smart HVAC with total control

Ride in comfort with a sealed cab and optional HVAC system with better airflow, better cooling capacity, fast defrost, rear vents, and refined controls—all designed for quieter, smarter, all-season performance.

Engineered for Easy Maintenance

Easier access, smarter design

With smart service points and tool-free access to key areas, it’s built for less downtime. Double-bounded bushings, bolted skid plate, and ready-to-work durability seal the deal.
