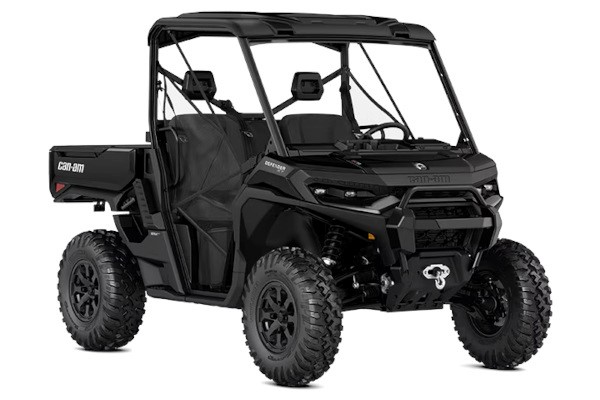

Defender XT HD11
The Defender XT HD11 delivers trail-ready control perfect for taking on large obstacles or bumps that require long travel suspension and high ground clearance. It fears nothing.
ENGINE
| Engine | HD11 |
|---|---|
| Engine displacement | 999 |
| Type | 95 hp / 70 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled |
| Transmission | pDrive primary and Quick Response System X (QRS-X) CVT with high airflow and Electronic Drive Belt Protection L / H / N / R / P |
| Drive Train | Selectable Turf Mode / 2WD / 4WD with Quick-4Lok auto-Locking front differential |
| Driving Assistance | CVT Engine Braking Sport / Normal / Work modes Speed Limiter |
SUSPENSION
| Front Suspension | Arched Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel |
|---|---|
| Front Shocks | Twin tube gas charged shocks |
| Rear Suspension | Arched Double A-Arm / 12 in. (30.5 cm) suspension travel |
| Rear Shocks | Twin tube gas charged shocks |
| Suspension | Standard |
TIRES/WHEELS
| Front Tires | XPS Trail King 2 29 x 9/11 x 14 in. |
|---|---|
| Rear Tires | XPS Trail King 2 29 x 9/11 x 14 in. |
| Wheels | 14 in. cast-aluminum |
BRAKES
| Front | Dual 262 mm disc brakes with hydraulic twin-piston calipers (32 mm) |
|---|---|
| Rear | Dual 236 mm disc brakes with hydraulic single-piston calipers (32 mm) |
| Brakes | Standard |
DIMENSIONS/CAPACITIES
| L x W x H | 129.8 x 65 x 81 in. (330 x 165 x 206 cm) |
|---|---|
| Ground Clearance | 14 in. (35.6 cm) |
FEATURES
| Gauge | 4.5 in. wide digital display 4.5 in. wide digital display with keypad & 10.25 in. touchscreen display |
|---|---|
| Winch | 4,500 lb (2,041 kg) winch with synthetic cable |
| Protection | Full heavy-duty HMW plastic skid plate, Full hard roof, Heavy-duty front bumper, Mudguards, Door safety net |
Connected Ride
Everything you need at your fingertips
Added situational awareness with a clear view of rear and front* camera angles. Easily control accessories from the display. Manage media within the applet on your touchscreen.
Available on certain models
Refined Power Delivery
New work-tuned HD11 engine
The new 999cc inline-3 HD11 engine delivers 95 HP and 70 lb-ft of torque. Paired with a smooth-shifting transmission, pDrive, and Quick-4Lok or Smart-Lok front diff, it’s built for control and drivability.
Best-in-Class Utility Features
Class-leading clearance, cargo, towing
With exceptional ground clearance, long suspension travel, serious towing and cargo capacity, and reduced NVH, this Defender is built to lead—on the job, off-road, and everywhere in between.
Advanced HVAC & Enclosure System
Smart HVAC with total control
Ride in comfort with a sealed cab and optional HVAC system with better airflow, better cooling capacity, fast defrost, rear vents, and refined controls—all designed for quieter, smarter, all-season performance.
Engineered for Easy Maintenance
Easier access, smarter design
With smart service points and tool-free access to key areas, it’s built for less downtime. Double-bounded bushings, bolted skid plate, and ready-to-work durability seal the deal.
