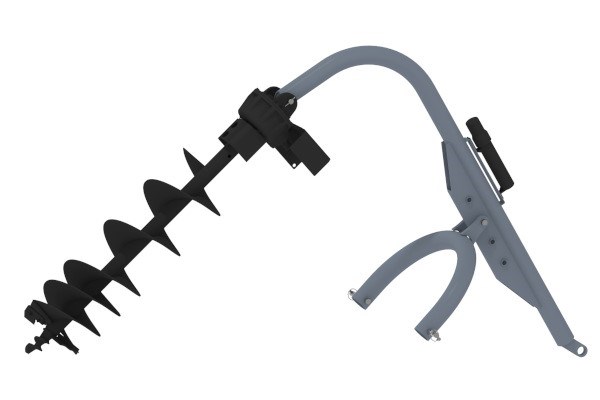

3 Point Auger (18–100 HP)
The 3 point auger is designed to make quick, clean work of installing posts for fences, signs, and other property applications. Built for strength and versatility, it delivers consistent hole placement and depth across a wide range of soil conditions.
Compatible with Category I and Category II tractors ranging from 18 to 100 horsepower, this 3 point auger features a heavy-duty gearbox and PTO driveline to power through demanding jobs. Multiple boom adjustment points allow for proper positioning, while the rigid tubular frame adds stability during operation. Pair it with optional augers to match your hole diameter and get reliable results job after job.
3 Point Auger (18–100 HP) Specs & Compare
| Models | SPD | HDPD |
| Overall Height | 60" | 60" |
| Overall Length | 72" | 72" |
| Overall Weight | 190 lb | 190 lb |
| Ovrall Width | 32" | 32" |
| Gearbox Ratio | 2.92:1 | 2.92:1 |
| Hitch Type | Category 1 | Category 1 |
| Lift Capacity | This boom is not designed be a lift device. Max boom lift capacity is to 500 lb | This boom is not designed be a lift device. Max boom lift capacity is to 500 lb |
| Maximum Drilling Depth | 48" | 48" |
| Maximum Tractor Horsepower | 100 HP | 100 HP |
| Weight | 175 lbs | 250 lbs |
3 Point Auger (18–100 HP) Features & Benefits
- Designed for drilling narrow, consistent holes for posts and signs
- Compatible with Category I and Category II tractors
- Rated for tractors from 18–100 HP
- Heavy-duty gearbox built to handle tough soil conditions
- Heavy-duty PTO driveline for dependable power transfer
- 48 in. maximum digging depth
- Four boom adjustment points for proper auger positioning
- Driveshaft cradle and control rod for added stability
- Round tubular frame for strength and long-term durability
- Replaceable auger teeth for extended service life
- Includes two removable support legs for storage and setup
