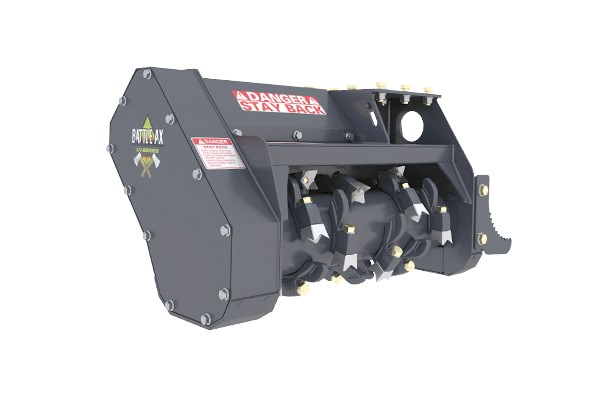

25BX10
7,000-10,000 lb Excavators
Even compact excavators can take advantage of the awesome power of the Battle Ax. Despite being the smallest model in the line, the 10 Series still packs a punch, thanks to its depth gauge design and Loftness® exclusive two-stage cutting chamber. It’s tough enough to carry the Loftness name, and we’re confident enough in its performance to back it with an industry-leading warranty.
25BX10 Specs & Compare
| Model | 25BX10 |
| Cutting Width | 25" (0.64 m) |
| Recommended Excavator Weight Range (in Pounds) | 7,000-10,000 |
| Overall Width | 45" (1.14 m) |
| Number of Teeth | 16 |
| Weight (without mount) | 620 LBS (281.2 kg) |
| Hydraulic Horsepower Range | 20-70 |
| Hydraulic Flow Range | 15-19.9 GPM |
25BX10 Features & Benefits
- Depth Gauges
The Battle Ax rotor design uses built-in depth gauges to control cutting depth, like raker teeth on a chainsaw. - Two-Stage Cutting Chamber
Two shear bars allow the Battle Ax to produce a finer mulch with fewer passes. The primary shear bar is adjustable for controlling particle sizes. - Convenient Tooth Mounting
The cutting teeth are mounted to the rotor with a single bolt. They can be easily reversed, replaced or removed on the jobsite using a common hex socket. - High-Performance Teeth Options
Choose from 4-point beaver teeth, Quadco reversible planer teeth or Double Carbide Teeth. - Fixed-Displacement Gear Motor
The 10 Series Battle Ax features a 45cc high-pressure gear motor for excavators with hydraulic systems ranging from 15 to 19.9 gallons per minute and up to 4,100 PSI (20 to 70 hydraulic horsepower). This reliable motor turns the rotor from 1,750 to 2,300 RPM. - 2-Band Belt Drive
A two-groove banded belt system efficiently transfers power to the rotor. - Machined Anti-Wrap Bearing Protection
Rotor ends are machine turned to mate with close tolerance, machined anti-wrap rings, which minimize debris in the bearing chamber. - Premium Strength Steel Housing
The Battle Ax is constructed of high-strength steel to withstand some of the toughest operating conditions. - Steel Deflector Chains
Running the entire length of the mulching attachment, steel deflector chains improve safety by reducing flying debris. - Optional Spade Hook/Hydraulic Thumb
The spade hook is a useful tool for positioning material to be mulched. A hydraulic thumb is also optional for added versatility. - Multiple Mounting Options
A variety of mounts are available for attaching the Battle Ax to any make of excavator. Pin-on and pin grabber styles are available, as well as blank plates. - 13.5-Inch-Diameter Rotor
- 1-3/4″ Piloted Double Taper Roller Bearings
- 2-Year Warranty
The Battle Ax comes standard with an industry-leading 2-year warranty.
