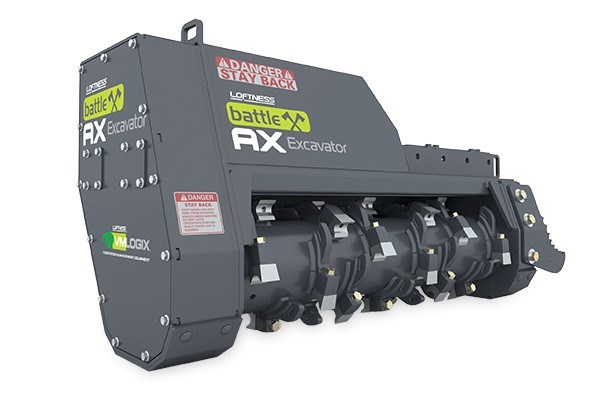

51BX40
36,000-60,000 lb Excavators
The 40 Series Battle Ax is optimized for use on excavators ranging from 36,000 to 60,000 pounds. It features the popular depth gauge design and Loftness exclusive two-stage cutting chamber. This maximizes performance and gives you the ability to create some of the smallest particle sizes in the industry. Plus, we’ve equipped it with the ideal hydraulic motor, belt drive and other features to pair well with your power unit. Of course, it’s all backed by Loftness’ superior customer support and large dealer network.
51BX40 Specs & Compare
| Model | 51BX40 |
| Cutting Width | 51" (1.3 m) |
| Recommended Excavator Weight Range (in Pounds) | 36K-60K |
| Overall Width | 80.6" (2 m) |
| Number of Teeth | 26 |
| Weight (without mount) | 3,010 LBS (1,365.3 kg) |
| Crated Weight | 3,120 LBS (1,415.2 kg) |
| Hydraulic Horsepower Range | 80-210 Hydraulic HP |
| Hydraulic Flow Range | 25-75 GPM |
51BX40 Features & Benefits
- Depth Gauges
The Battle Ax rotor design uses built-in depth gauges to control cutting depth, like raker teeth on a chainsaw. - Two-Stage Cutting Chamber
Two shear bars allow the Battle Ax to produce a finer mulch with fewer passes. The primary shear bar is adjustable for controlling particle sizes. - Convenient Tooth Mounting
The cutting teeth are mounted to the rotor with a single bolt. They can be easily reversed, replaced or removed on the jobsite using a common hex socket. - High-Performance Teeth Options
Choose from three cutting tooth options:
Quadco planer blades
Hard-surface Quadco blades
Double carbide teeth - Adjustable-Displacement Piston Motor
The 40 Series Battle Ax features a 135cc adjustable displacement piston motor for excavators with hydraulic systems ranging from 25 to 75 gallons per minute and up to 6,000 PSI (80 to 210 hydraulic horsepower). This motor turns the rotor from 1,800 to 2,500 RPM and can be manually adjusted for fine-tuning performance on a variety of excavators. - Synchronous Belt Drive
The positive drive, cog belt and sprocket design increases efficiency and requires less maintenance than other drive types. - Machined Anti-Wrap Bearing Protection
Rotor ends are machine turned to mate with close tolerance, machined anti-wrap rings, which minimize debris in the bearing chamber. - Premium Strength Steel Housing
The Battle Ax is constructed of high-strength steel to withstand some of the toughest operating conditions. - Steel Deflector Chains
Running the entire length of the mulching attachment, steel deflector chains improve safety by reducing flying debris. - Optional Spade Hook
The spade hook is a useful tool for positioning material to be mulched. - Multiple Mounting Options
A variety of mounts are available for attaching the Battle Ax to any make of excavator. Blank, pin-on and pin grabber styles are available. - 17-Inch-Diameter Rotor
- 2-1/2″ Piloted Double Taper Roller Bearings
- 2-Year Warranty
The Battle Ax comes standard with an industry-leading 2-year warranty.
