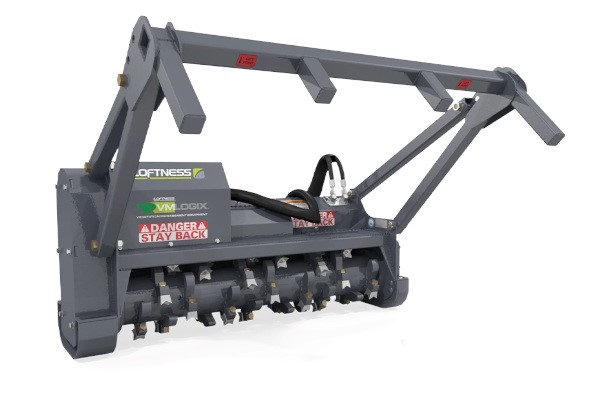

61BSL
If you have a low-flow skid steer or compact track loader with 15-35.9 GPM weighing up to 10,300 pounds, the L Series mulching head is for you. Take advantage of the innovative, high-performance Battle Ax rotor and the Loftness® exclusive two-stage cutting chamber to quickly mulch material with the ability to create some of the smallest, most consistent particle sizes in the industry.
61BSL Specs & Compare
| Model | 61 |
| Cutting Width | 61" (1.55 m) |
| Overall Width | 76" (1.9 m) |
| Number of Teeth | 38 |
| Weight (without mount) | 1,728 LBS (784 kg) |
| Hydraulic Horsepower Range | 30-70 |
| Fixed Displacement Gear Motor | Up to 4,100 PSI - 15-34.9 GPM |
| Power Unit Weight | Up to 10,300 LBS |
Specifications and data are subject to change without notice.
61BSL Features & Benefits
- Depth Gauges
The Battle Ax rotor design uses built-in depth gauges to control cutting depth, like raker teeth on a chainsaw. - Two-Stage Cutting Chamber
Two shear bars allow the Battle Ax to produce a finer mulch with fewer passes. The primary shear bar is adjustable for controlling particle sizes. - Convenient Tooth Mounting
The cutting teeth are mounted to the rotor with a single bolt. They can be easily reversed, replaced or removed on the jobsite using a common hex socket. - High-Performance Teeth Options
Choose from 4-point beaver teeth, Quadco reversible planer blades or double carbide teeth. - Fixed-Displacement Gear Motor
The high-pressure gear motor is a reliable, cost-effective workhorse. It is for use with case drain. - Synchronous Belt Drive
The positive drive, cog belt and sprocket design maximizes efficiency and requires less maintenance than other drive types. - Machined Anti-Wrap Bearing Protection
Rotor ends are machine turned to mate with close tolerance, machined anti-wrap rings, which minimize debris in the bearing chamber. - Adjustable Push Bar
Constructed with integrated, welded claw hooks, the bar helps push falling trees and brush away from the power unit, while also allowing them to be properly positioned for efficient feeding into the head. - Performance Monitoring
An integrated PSI gauge that monitors the hydraulic load is positioned for easy viewing from the skid steer cab. It helps keep the Battle Ax at the optimum hydraulic load for peak performance throughout an application. - Premium Strength Steel Housing
All body components are laser cut from premium strength steel. Also, abrasion resistant steel is used in high-wear areas - Steel Deflector Chains
Running the entire length of the mulching attachment, steel deflector chains improve safety by reducing flying debris. - Maximum Visibility
The Battle Ax is designed for maximum visibility from the skid steer cab, which increases safety, productivity and efficiency. - Universal Skid Steer Mount
The universal mount allows the Battle Ax to be easily used with any brand or model of skid steer or compact track loader. - Hydraulic Hose Routing
Hoses are right sized and routed to reduce the chance of binding, yet are long enough for a full range of motion without damage. Hoses are included, couplers are not. - 13.5-Inch-Diameter Rotor
- 1-3/4″ Piloted Double Taper Roller Bearings
