Model BT20

BT20

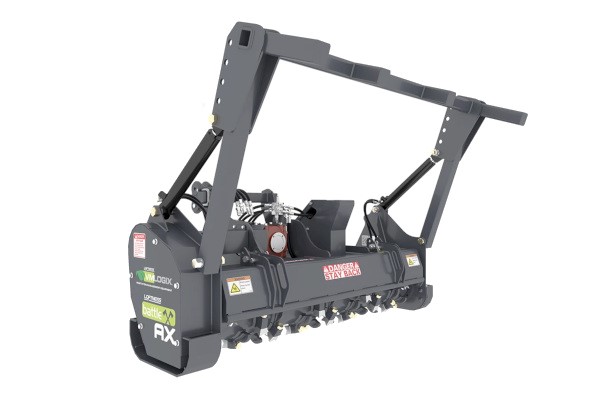

Harness the performance of the Battle Ax with your existing tractor. Compatible with 540 RPM PTO tractors with 30 to 70 PTO horsepower, the Battle Ax Tractor mulching attachment uses its unique rotor design to efficiently mulch unwanted vegetation on your property. Plus, the Loftness® exclusive two-stage cutting chamber helps you process material more thoroughly and more consistently for quicker decomposition and a nicer look, if desired.

  • Get a Quote
  • Send to a Friend
  • Payment Calculator

    • Get information on the BT20

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the BT20

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

BT20 Specs & Compare
Download PDF
ModelBT20
Cutting Width61" (1.6 m)
Overall Width77" (1.8 m)
Number of Teeth38
Weight (Includes Hydraulic Pusher)1,675 lbs (760 kg)
Deflector Door Weight (Optional)86 lbs (39 kg)
Containment Door Weight (Optional)207 lbs (94 kg)
PTO Horsepower Range30-70
BT20 Features & Benefits
  • Depth Gauges
    The Battle Ax rotor design uses built-in depth gauges to control cutting depth, like raker teeth on a chainsaw.
  • Two-Stage Cutting Chamber
    Two shear bars allow the Battle Ax to produce a finer mulch with fewer passes.
  • Convenient Tooth Mounting
    The cutting teeth are mounted to the rotor with a single bolt. They can be easily reversed, replaced or removed on the jobsite using a common hex socket.
  • High-Performance Teeth Options
    Choose from 4-point beaver teeth, Quadco reversible planer blades or double carbide teeth.
  • Staggered/Spiral Tooth Pattern
    This exclusive tooth arrangement ensures single-tooth contact with the work surface at all times while maintaining optimal rotor balance.
  • 3-Point Hitch
    The Battle Ax Tractor hitch is adaptable from Cat I to Cat II, free-link or quick hitch. The mulcher can be centered or positioned 16 inches offset to the right.
  • PTO Kickout
    A cam-type PTO kickout protects the gearbox from damage without a clutch pack.
  • Machined Anti-Wrap Bearing Protection
    Rotor ends are machine turned to mate with close tolerance, machined anti-wrap rings, which minimize debris in the bearing chamber.
  • Premium Strength Steel Housing
    The Battle Ax is constructed of high-strength steel to withstand some of the toughest operating conditions.
  • Steel Deflector Chains
    Running the entire length of the mulching attachment, steel deflector chains improve safety by reducing flying debris.
  • Adjustable Push Bar (Optional)
    A manually adjustable tree pusher bar with welded claw hooks is available.
  • Containment Door (Optional)
    A containment door option helps prevent the mulcher from projecting material underneath the tractor.
  • Deflector Door (Optional)
    The Battle Ax Tractor can be equipped with a deflector door for more thorough processing and direct discharge toward the ground.
  • 13.5-Inch Cutting Tip Diameter
  • 3-B Section Banded Belt With Spring-Loaded Tensioner
  • 1/4″ End Plates
  • 3/16″ Hood
  • 1-3/4″ Piloted Double Taper Roller Bearings
  • 2-Year Warranty
    The Battle Ax comes standard with an industry-leading 2-year warranty.
