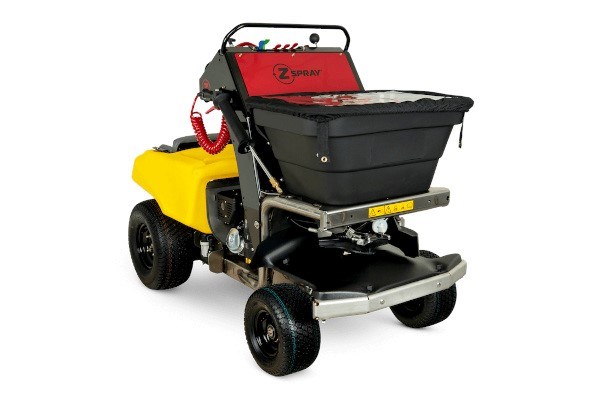

ZSL3620
Z-Spray Lean-to-Steer with 10 HP* Vanguard 307cc Engine
| MODEL | ZSL3620 |
| EQUIPMENT | |
| Front Tires | 13 x 6.5-6 |
| Rear Tires | 18 x 7.5-8 |
| Frame | Stainless Steel |
| Gate Width | 36" |
| UPC | 193308207650 |
| Onboard Intelligence | Digital Spreader Speed & Spray Pressure Control |
| POWER COMPONENTS | |
| Transmission | Hydrostatic |
| Fuel System | Gas |
| Speed | 0-5.5 mph (8.8 kmph) forward, 0-4.0 mph (6.4 kmph) reverse |
| Fuel Capacity | 1.26 gal. |
| Displacement | 307 cc |
| Drive System | Transaxle |
| Ground Speed | 0-5.5 mph (8.8 kph) forward, 0-4.0 mph (6.4 kph) reverse |
| DIMENSIONS | |
| Width | 35.5" |
| Height | 51.5" |
| Curb Weight | 532 lbs. |
| Length | 67.5" |
| SPREADER SYSTEM | |
| Hopper Capacity | 175 lbs. + 50 lbs. on spray tank; 12 VDC, 2 hp motor |
| Spread Width | 4' to 22' |
| Tank Capacity | 20 gal. |
| Pump | 3.8 GPM |
| Spray Rate | |
| ENGINE | |
| Engine Brand | Vanguard |
| Engine Model | 307cc |
| Engine Spec | 19V3370146F1 |
| Displacement | |
| SPRAY SYSTEM | |
| Spray Rate | Wide - 0.69 gpm at 30 psi, 0.80 gpm at 40 psi; Narrow - 0.35 gpm at 30 psi, 0.40 gpm at 40 psi |
| Spray Width | Wide spray up to 11 ft wide; Narrow spray up to 5 ft wide |
| Tank Capacity | |
| Pump |
Discover the Z-Spray LTS
Z Turf Equipment presents the innovative and compact Z-Spray LTS stand-on fertilizer spreader, engineered for professionals who demand performance and reliability. The LTS spreader sprayer will take your application program to the next level, boosting productivity and providing unmatched ease of operation. The Z-Spray LTS commercial fertilizer sprayer offers superior performance for its size and maneuverability due to our advanced Lean-to-Steer technology. Have confidence in the Z-Spray LTS and its spray system to endure season after season of tough turf conditions. Durable ceramic air induction nozzles provide low drift application even in windy conditions, while our high-grade corrosive-resistant stainless-steel chassis further increases the longevity of your Z Turf Equipment investment.
You can also count on the 9.5 HP Kohler engine to keep you moving at a ground speed up to 5.5 MPH. Spread and spray widths are easy to adjust on the Z-Spray LTS to apply liquid and granular materials precisely. Choose between a narrow spray of up to 5 feet or a wide spray of up to 11 feet. The spray system features nozzles that can shut off immediately, giving you the control to apply the correct chemicals to the turf with this versatile commercial lawn sprayer.
With a 1.59-gallon fuel capacity and a 20-gallon tank for materials, the LTS keeps you riding longer in-between fill-ups. This nimble ride-on fertilizer spreader presents a gate width of just 36 inches, allowing landscape professionals and do-it-yourselfers to tackle projects, big or small. For added efficiency, consider expanding your Z Turf Equipment with a full array of accessories for your spreader sprayer, including a 15- or 30-foot hose and tray, anti-siphon assembly, multi-purpose bag, spray wand, hopper screen, and an assortment of colored spray nozzles.
The Z-Spray LTS commercial fertilizer spreader is designed to handle smaller to mid-size jobs efficiently with unmatched performance. For larger applications or expanded turf management needs, explore the full range of Z Turf stand-on spreaders to find the right equipment for the job.
