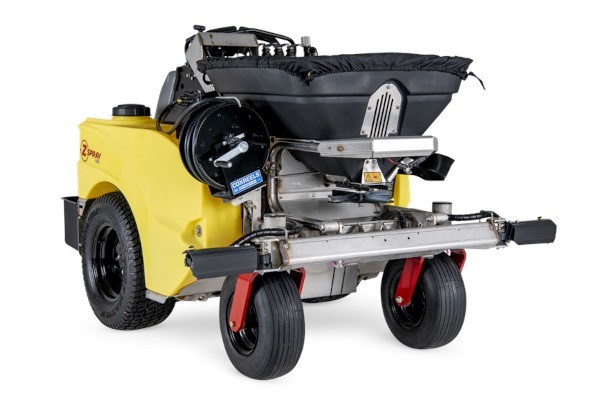

Model ZSX4640

ZSX4640

Z-Spray Mid Stand-On Spreader-Sprayer with 23 HP* Vanguard 627cc Engine

  • Get a Quote
  • Send to a Friend
  • Payment Calculator

    • Get information on the ZSX4640

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the ZSX4640

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

ZSX4640 Specs & Compare
Download PDF
MODELZSX4640
EQUIPMENT
Front Tires16 X 6.5 -8 Ribbed
Rear Tires24 X 9.5 - 12
FrameStainless Steel
Gate Width48"
UPC193308225265
Onboard IntelligenceN/A
POWER COMPONENTS
TransmissionZT5400
Fuel SystemGas
SpeedUp to 10 MPH
Fuel Capacity5 Gal.
Displacement
Drive SystemHydro-Gear ZT5400
Ground Speed10 mph
DIMENSIONS
Width46"
Height50"
Curb Weight896 lbs.
Length73"
SPREADER SYSTEM
Hopper Capacity250 lbs. + (2X) 50 lbs. Fertilizer Trays; 12 VDC, 2 hp motor
Spread Widthup to 25'
Tank Capacity
Pump
Spray Rate
ENGINE
Engine BrandVanguard
Engine Model627cc
Engine Spec3867773152G1
Displacement627 cc
SPRAY SYSTEM
Spray Rate.25 GPM at 40 psi (14.9 GPA or .34 GAL/1000 SQ. FT. at 5 MPH)
Spray Width2', 6', 8', & 10'
Tank Capacity40 Gal.
Pump5.3 GPM
ZSX4640 Features & Benefits

Discover the Z-Spray Mid

The Z-Spray Mid 46-inch stand-on fertilizer spreader from Z Turf Equipment strikes the perfect middle ground of maneuverability and productivity for turf care professionals. At 46-inches, it’s narrow enough to fit into gated communities, but with a 250 lb. hopper and 40-gallon tank capacity, it can easily tackle larger urban and municipal jobs. An isolated operator platform and contoured operator pad work with logical, easy-to-use controls to make Z-Spray Mid an easy machine to operate productively all day, all season.

Choose from 2ft, 4ft, 6ft, or 8ft spray patterns, and spread widths of up to 25-feet, with the ability to simultaneously apply granular and liquid materials at up to 8 mph. As a versatile commercial lawn sprayer, the Z-Spray Mid also includes a 75-foot hose reel to provide extended access for spraying tight spaces.

The low center of gravity design places the heaviest components low in the corrosion-resistant stainless-steel frame, enhancing stability and maneuverability across different turf conditions. The bi-directional spray boom pivots both forward and back when impacted, reducing the risk of damage and keeping downtime to a minimum. A redesigned tank drains more completely, minimizing material waste, and a tools-free drain simplifies maintenance.

When combined with patented locking front caster wheels and wide, 24-inch drive tires, the Z-Spray Mid stands out as a top choice among commercial sprayers for turf management. We offer a wide range of accessories to customize the Z-Spray Mid to your specific needs, including a 2-gallon foam marker, 30-gallon auxiliary tank, vibratory hopper motor, LED light kit, 7-gallon ISO tank, and more.

When you need a ride on fertilizer spreader that brings the perfect combination of speed, durability, and precision, the Z Spray Mid is ready to meet the demands of your turf care business. Explore other models like the Z-Spray LTS, Z-Spray Junior, and Z-Spray Max to find the best fit for your lawn care needs.
